Self Aligning Ball Bearings

•

•

•

•

What are self aligning ball bearings?

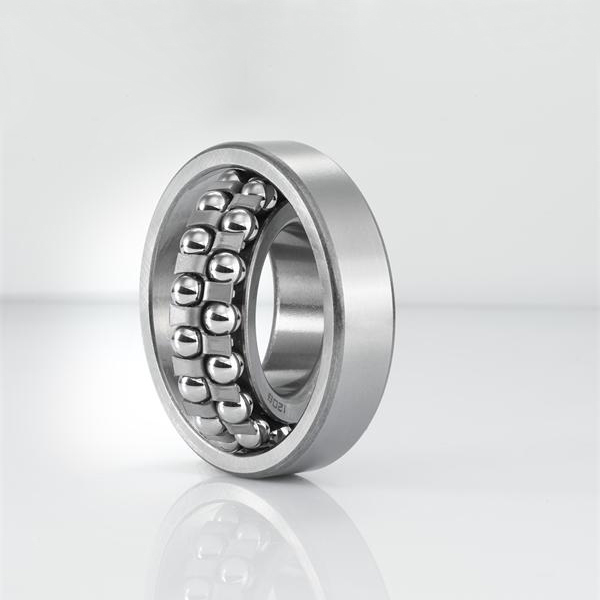

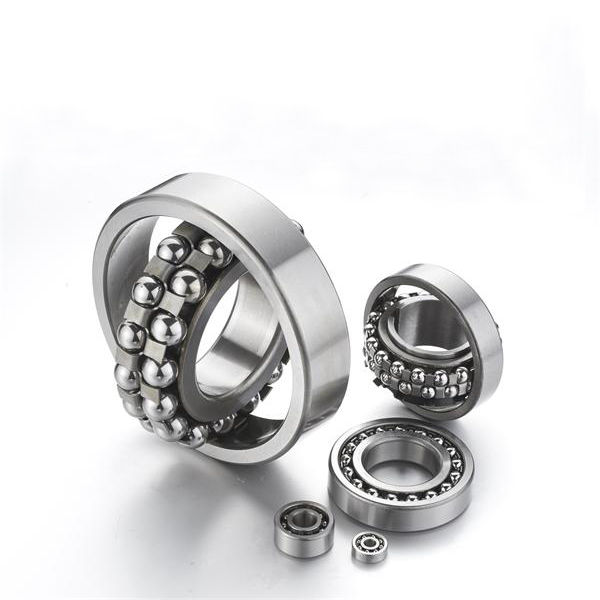

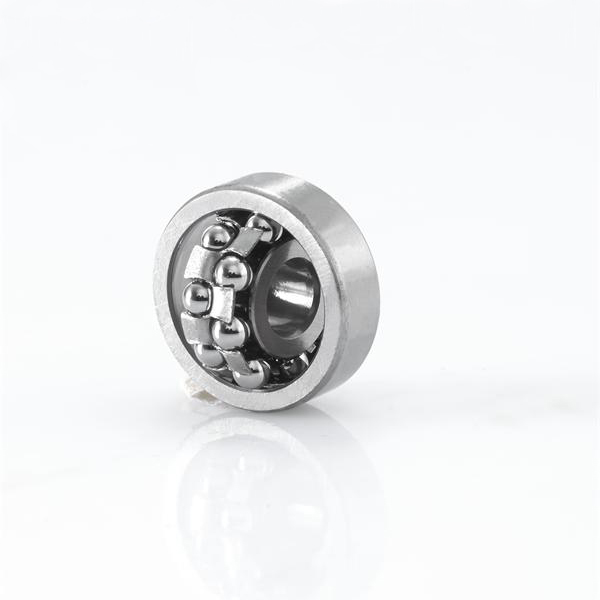

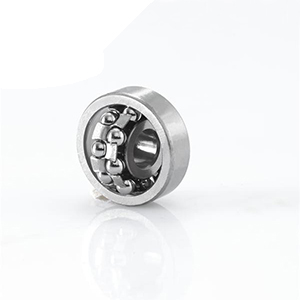

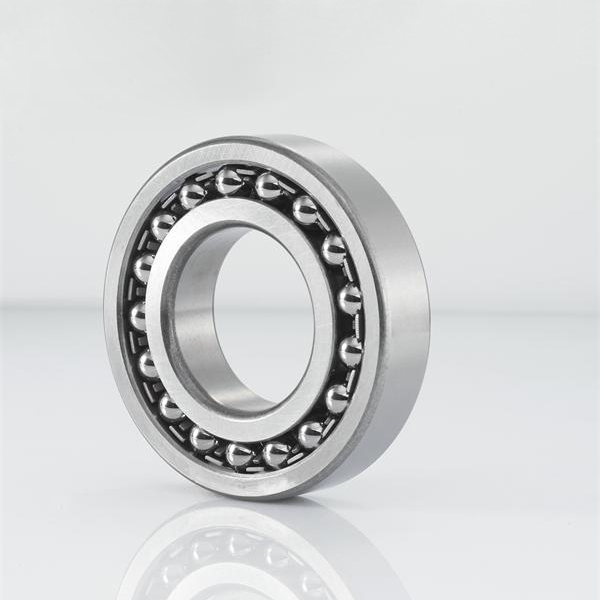

These are bearings that are able to accommodate a small angular misalignment which may occur due to improper mounting or deflection. A self aligning ball bearing consists of an inner ring and an outer ring. A ball assembly which is made up of two rows is contained within the outer ring. The ball assembly has a common raceway in the outer ring which is concave and spherical, and a double raceway in the inner ring. This design enables ball bearings to carry out the task of self alignment by allowing some degree of angular misalignment of the shaft with respect to the housing. The main feature of these self aligning ball bearings is the ability by the balls, cage and inner ring to freely rotate at a certain limited angle.

As compared to all other rolling bearings, the self aligning ball bearing has the lowest friction and therefore can maintain cooler temperatures even when running at high speeds. They are used in carrying radial loads as well as light axial loads. However, they are not able to perform the duties of carrying pure axial loads.

Where do we use them?
Self aligning ball bearings are suitable where there is a possibility of shaft deflections or misalignment due to the difficulty in accurate positioning of housing bores. This makes them suitable for long shafts.
Self-aligning ball bearings are also used in mining machinery, heavy machinery, agricultural machinery, ventilators, railway axle boxes, power machinery as well as textile machinery.

Product Specification:
1. 1200 Series: 1200-1222
2. 1300 Series: 1300-1322
3. 2200k Series: 2200-2222
4. 2300k Series: 2300-2322
Bearing numbers with suffix K/S are also available.

HS Code: 84821000
Standard: ISO9001:2000
Package: industrial packing / single paper box + carton+ pallet
Brand: ZZB
Material: carbon steel, chrome steel, stainless steel
Delivery time: 30-45 days
Productivity: 6,000,000pcs per year
Min. Order: 100pcs
Transportation: Sea, air, express
