Roller Chains

•

•

•

What is a roller chain and where do we usually need it?

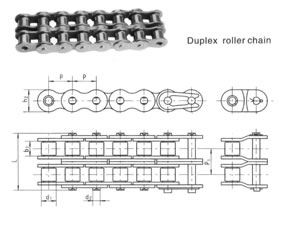

Roller chains are also known as bush roller chain. They are regularly used for mechanical power transmission in various industrial and agricultural equipment as well as two-wheeled vehicles, like bicycles and motorcycles, and so on. At ZZ Group Bearings, you can obtain both simplex and duplex roller chains.

Advantages
They have higher efficiency and less wear for their special design. Generally speaking, a bush roller chain is composed of two types of links, inner links and outer links. And outer links alternate with inner links. Inner links have two inner plates which are held together by sleeves or bushings. Outer links have two outer plates which are held together by pins. And the pins pass through the bushings or sleeves of the inner links.
This kind of construction, to a certain extent, is able to help reduce the wear of both sprocket teeth and chains. However, even lower friction can also be obtained by lubricating chains. As a result, continuous lubrication of roller chains is of great importance for obtaining higher operation efficiency.

Product specifications:
1. Product rang:

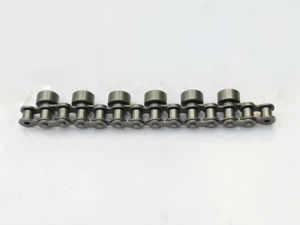

a. Short pitch precision roller chains (A & B series)
b. Cottered type short pitch precision ones(A series)
c. Heavy duty short pitch precision ones(A series)
d. Roller chains with straight side plates (A & B series)
2. Package: industrial packing/single paper box + carton+ pallet
3. Brand: ZZB
4. Delivery time: 30-45 days
5. Transportation: sea, air and express are all possible.
